Brand Name : WellDa(OEM)
Model Number : H090BWV50E5004
Certification : ROHS、ISO9001、CE
Place of Origin : ShenZhen, China
MOQ : Negotiable
Price : Negotiable
Payment Terms : T/T
Supply Ability : 300Kpcs/month
Delivery Time : 7-15 working days
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Name : 9 Inch LCD Display Module
Resolution : 800× RGB × 480
Interface : RGB-24bit
Connect type : Connector
Color Depth : 16.7M
Technology type : a-Si
Pixel pitch (mm) : 0.0825(H) x 0.2327(V)
Pixel Configuration : R.G.B. Vertical Stripe
Display Mode : Normally White
Driver IC : TBD
Surface Treatment : 3H
Viewing Direction : 12 O’clock
View direction(Gray Inversion) : 6 O’clock
LCM (W x H x D) (mm) : 210.6*126.5*3.5
Active Area(mm) : 198 x111.69
With /Without TSP : With TSP
Weight (g) : TBD
LED Numbers : 39 LEDs
Interactive 9 Inch LCD Display Module With Advanced Features
LCD Display Module Description:
Experience unparalleled visual quality with our 9 Inch LCD Display Module. It offers a high-resolution 800 x 480-pixel display, delivering sharp images and vibrant colors for an optimal viewing experience. The module comes equipped with an RGB-24bit interface that ensures seamless data transmission, thereby enhancing performance. It also boasts a color depth of 16.7M, which guarantees accurate color representation and clarity. The module is designed with an A-Si technology type, known for its high reliability and performance. The module features a convenient size, with an active area of 198 x 111.69mm, making it suitable for a range of applications. To make interaction more intuitive, this model comes with a touch screen panel (TSP). We recommend following the safety and handling instructions provided for maintaining its functionality and prolonging its life.
LCD Display Module Applications:
1. Automotive Applications: In automotive electronics, Small LCD Displays are used in onboard diagnostics systems, GPS navigation systems, rear-view cameras, and digital speedometers. Their high brightness and contrast ratio ensure excellent readability even under bright ambient light conditions.
2. Consumer Electronics: In the realm of consumer electronics, these displays are used in personal devices like smart home systems, fitness trackers, and smartwatches. They provide high-resolution images and consume less power, making them efficient and user-friendly.
3. Point of Sale Systems: Small LCD Displays are widely used in point of sale (POS) systems. These systems require compact, clear, and durable displays, and these LCDs are ideal for showing customer transactions, product information, and digital signatures.
LCD Display Module Parameters:
Name: | 9 Inch LCD Display Module | Resolution: | 800× RGB × 480 |
---|---|---|---|
Interface: | RGB-24bit | Connect Type: | Connector |
Color Depth: | 16.7M | Technology Type: | A-Si |
Pixel Pitch (mm): | 0.0825(H) X 0.2327(V) | Pixel Configuration: | R.G.B. Vertical Stripe |
Display Mode: | Normally White | Driver IC: | TBD |
Surface Treatment: | 3H | Viewing Direction: | 12 O’clock |
View Direction(Gray Inversion): | 6 O’clock | LCM (W X H X D) (mm): | 210.6*126.5*3.5 |
Active Area(mm): | 198 X111.69 | With /Without TSP: | With TSP |
Weight (g): | TBD | LED Numbers: | 39 LEDs |
![]() |

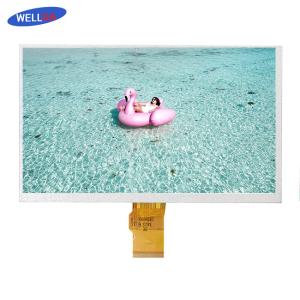

Interactive 9 Inch Touch Screen Module For Automotive Electronics Images |
